US $150-$350 / Cubic Meter

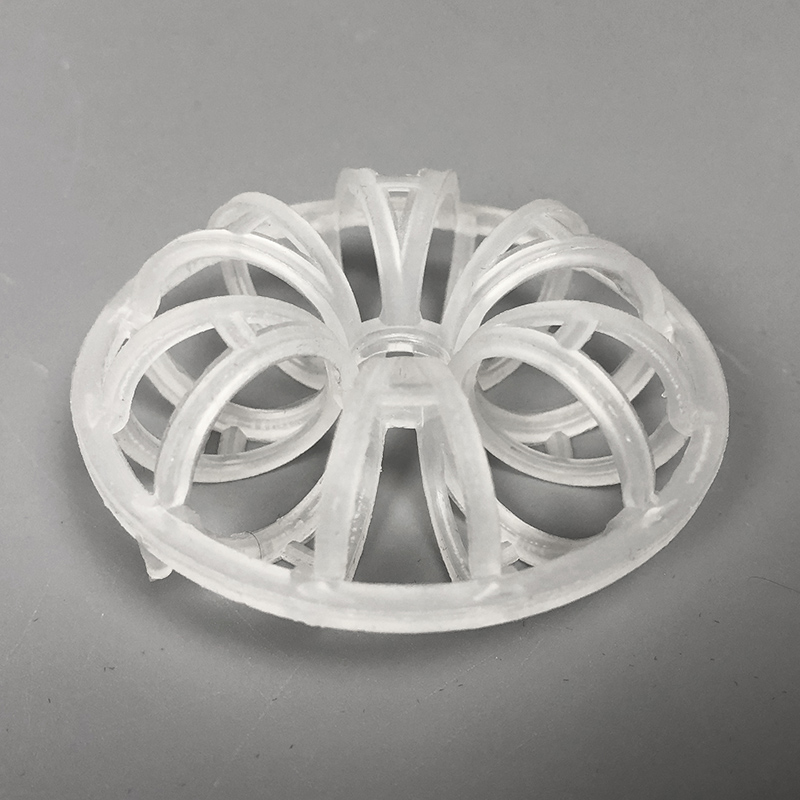

Tellerette packing is built in a unique patent of toroidal helix that provides a dramatic appearance and performance efficiency than typical mass transfer packings, particulate collection, and heat transfer.
Tellerette tower packing has its newest packing K-series, the 2K, the 3K, SO, S, S-II, L-II, and LL which offers a more improved design if compared to the original tellerette random packing with an increased open area and pressure drop now has been reduced. This is a good thing with lowered pressure drop for it offers high efficiency of scrubbing up to 700 fpm velocities.
For retrofitting purposes, with towers requiring higher removal efficiency, increased capacity, or both, this tellerette packing media would be ideal to use.
This tellerette packing media, it has the full advantage of lower pressure, energy, and efficient mass transfer.
With all this cycle of its application, this tellerette tower packing performs efficiently with various manufacturer's systems providing an exceptional efficient removal of pollutant while at the same time decreasing the operating costs.

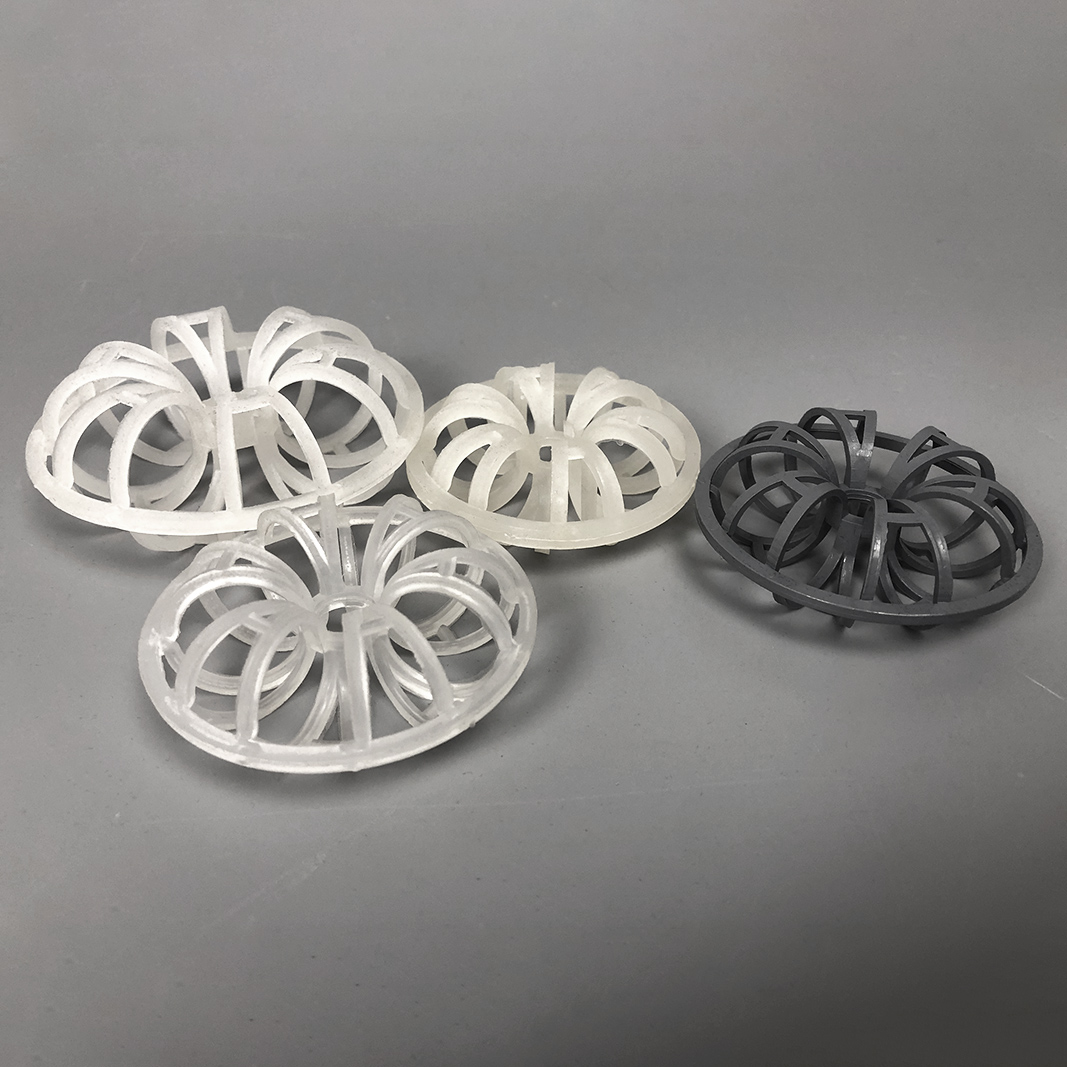

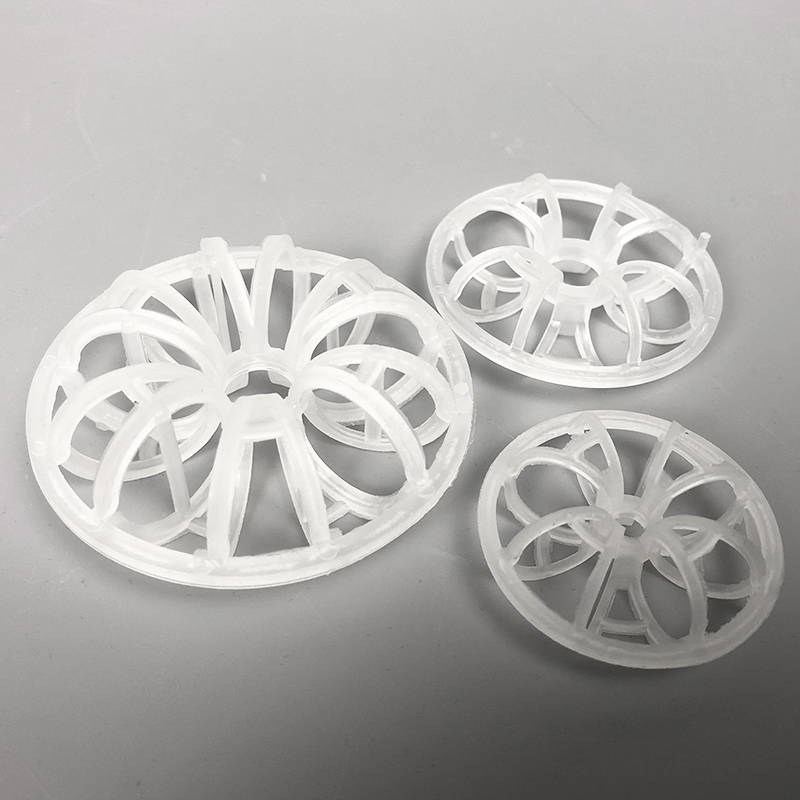

Tellerette packing appears in nominal packing sizes, namely, #1R, #2R, #2K, #3R, and #3K. Its maximum dimension are, 46mm, 70mm, 83mm, 95mm, and 105mm respectively. On the other hand, its loop height are available in 19mm, 25mm, 32mm, 38mm, and 56mm, respectively.

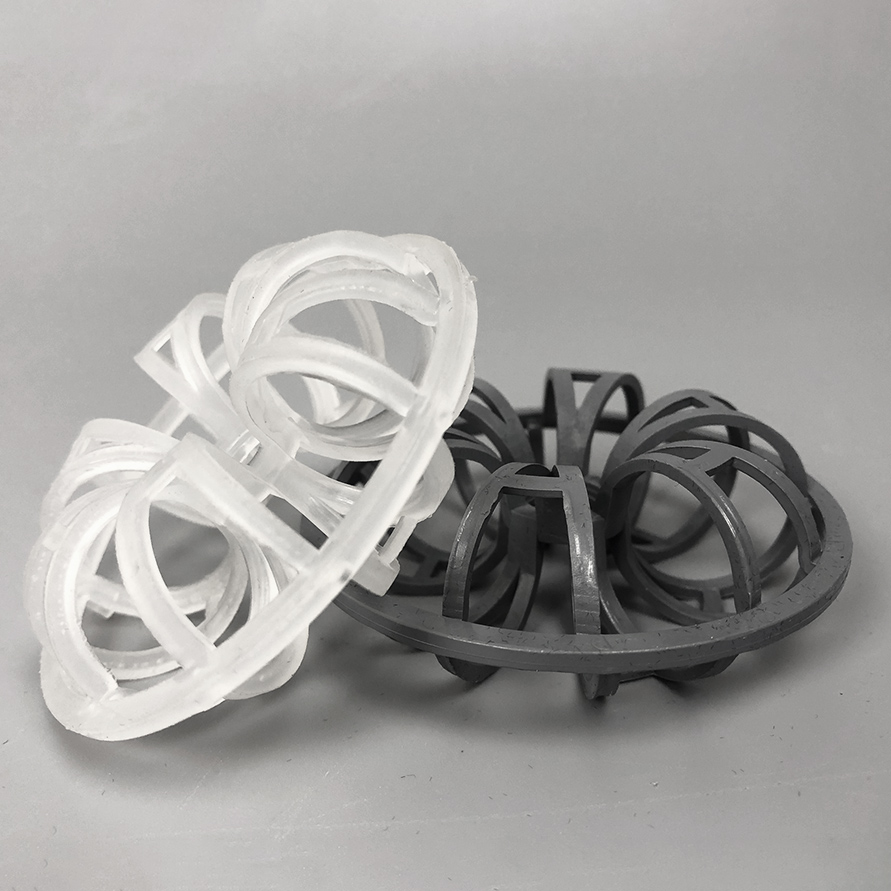

This tellerette packing media can be buy in a wide range of material options which includes Polyethylene, Polypropylene, PVC, CPVC, Tefzel, and PVDF.
| Tellerette Packing | ||||||
| Performance / Material | PE | PP | RPP | PVC | CPVC | PVDF |
| Density (kg/m3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
| Operation Temp.(Degree C) | 90 | >100 | >120 | >60 | >90 | >150 |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good |
| Compression Strength(Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 |
| Technical Data | ||||||
| Size (mm) | Surface m2/m3 | Free Vol.% | Number per m3 | Weight kg/m3 | ||
| 25*9*(1.5*2) (5 ring) | 195 | 82 | 170000 | 90 | ||
| 47*19*(3*3) (9 ring) | 185 | 88 | 32500 | 111 | ||
| 51*19*(3*3) (9 ring) | 180 | 98 | 23500 | 103 | ||
| 59*19*(3*3) (12 ring) | 150 | 92 | 17500 | 72 | ||
| 73*27.5*(3*4) (12 ring) | 127 | 89 | 8000 | 80 | ||
| 95*37*(3*6) (18 ring) | 94 | 90 | 3900 | 78 | ||
| 145*37(3*6) (20 ring) | 118 | 95 | 1100 | 48 | ||
Like the metal variants, the plastic and ceramic variants of the cascade rings come
It has greater capacity of gas flow which permits the use of smaller diameter columns which costs obviously lower.
Retrofitting is available for existing towers to achieve improved efficiency and higher capacity.
Operating costs can be reduced as it provides lower pressure drop.
Fouling can be minimized due to its designed having high open area.
It has a high column stability. Classic flooding can be avoided.
It offers effective impingement of both solid and liquid particulate.
During proper liquid distribution, it requires no channeling.
With shallow tellerette bed, effective mist elimination is provided.
The way how tellerette packing media works starts by collecting liquid through inertial impaction. Then at countless holdup points appearing in interstitial form, droplets will exist.
On each fallen droplets, it will strike the next tellerette packing element and bursts which will cause fresh surface to be exposed to gas. The cycle of dispersal continuously requiring no other additional energy. Along the process, with unique efficiency, contaminants are then absorbed.
Tellerette packing shipment has proven its quality and assurance with respect to time and expected date of arrival of package, safely to the customer's address.
The materials used in the packing include: Polypropylene (PP), High-Density Polyethylene (HDPE), Glass-Filled Polypropylene, Kynar (PVDF), Xydar (LCP), Chlorinated Polyvinyl Chloride (CPVC), and there are some options for additional engineered polymers available upon request.
#1-TypeR, #2-TypeR, #3-TypeR, #2-TypeK, and #3-TypeK
To receive a complete line of packing in China, it's best to inspect our tellerette packing with its corresponding features and benefits. Part of it is the support plate which provide a maximum free passage, an open area, minimizing solids deposit, and allowing easy flushing for cleaner outcome.
Since an extensive range of tower packings for mass transfer operations has been provided with tellerette random packing, the packing can do its best job in wet scrubbers, cooling towers, absorption columns and gas strippers, or mist eliminators. With its highly efficient tower packing design, the assurance of all of its mentioned features can be expected.
