Raschig Rings
Raschig Rings
  • Raschig Rings
  • Raschig Rings
  • Raschig Rings
  • Raschig Rings
  • Raschig Rings

Raschig Rings

US $150-500 / Cubic Meters

What are raschig rings? Also known as the packing, raschig rings are tube-shaped ceramic rings. These rings were invented by a Germany chemist known as Friedrich Raschig. Raschig rings usually feature identical measurements both in height and width.

We supply various types of raschig rings such as ceramic raschig ring, metal super raschig ring, plastic raschig ring and stainless steel raschig ring etc. Customized making is allowed.

Raschig Rings

The primary use of raschig rings is to ensure the production of stronger and purer ethanol. Raschig Rings are highly applicable in the production of alcoholic beverages. Stacking these rings in the distilling columns assists ethanol vapour in moving to the condensing units while hindering vapours attained from other harmful substances from reaching these units

Raschig rings are stacked in distilling columns while producing alcoholic beverages to assist in channelling ethanol vapour directly to the condensing units. These rings are also responsible for hindering vapours emanating from other harmful substances from proceeding to the condensing chambers.

Raschig Rings

Carbon raschig rings

Carbon raschig rings

Ceramic raschig rings

Ceramic raschig rings

Metal Pall Ring

Metal raschig rings

Glass raschig rings

Glass raschig rings

Raschig Rings Specification

Model : Plastic raschig ring
MaterialPP, RPP, PE, PVC, CPVC, PVDF, etc.
SpecD*H*TNumber per m3Specific AreaVoid VolumeDrying Packing Factor
unit(mm)pcsm2/m3%m-1
Dg1616X16X0.423000035095.0379
Dg2525X25X0.55100022095.0400
Dg3838X38X0.81900015093.0430
Dg5050X50X0.7650010896.4285
Dg7676X76X0.8183069.097.3212
Dg8080X80X1.2160065.096.0300
Customized making is allowed.
PackageJumbo bag;
M.O.Q1 CBM
Payment TermsT/T; L/C; PayPal; West Union
Container20GP40GP40HQNormal orderSample order
Quantity25 CBM54 CBM68 CBM<25 CBM< 5 pcs
Delivery Time7 days14 days20 days7 DaysStock
Note
Stainless steel raschig rings data is the same as plastic raschig rings, but Stainless steel raschig rings material: carbon steel, stainless steel including 304, 304L, 410,316, 316L.
Model : Ceramic Raschig Rings
SpecD*H*TNumber per m3Surface area Void VolumeDrying Packing Factor
(mm)(mm)pcsm2/m3%m-1
1515×15X0.425000033070960
2525X25X0.54900019078400
50×5050×50X0.860009381305
100100X100X0.710007070170
Customized making is allowed.
Chemical Composition
SiO2Al2O3SiO2+Al2O3Fe2O3 CaOMgOK2O+Na2OOther
>70%15-23%>92%<1%<0.25%<0.2%2-4%<1%

Ceramic Raschig Rings

We offer the best Ceramic Raschig Rings on the market. Small sized pickings held together as a column bed is supported by cross partition rings that are fixed at the bottom of the column.

To attain long lasting performance while offering the best services, the products are manufactured in compliance with all the industrial manufacturing standards.

These super quality rings are extensively applied in various random packaging activities, therefore, providing to be more useful.

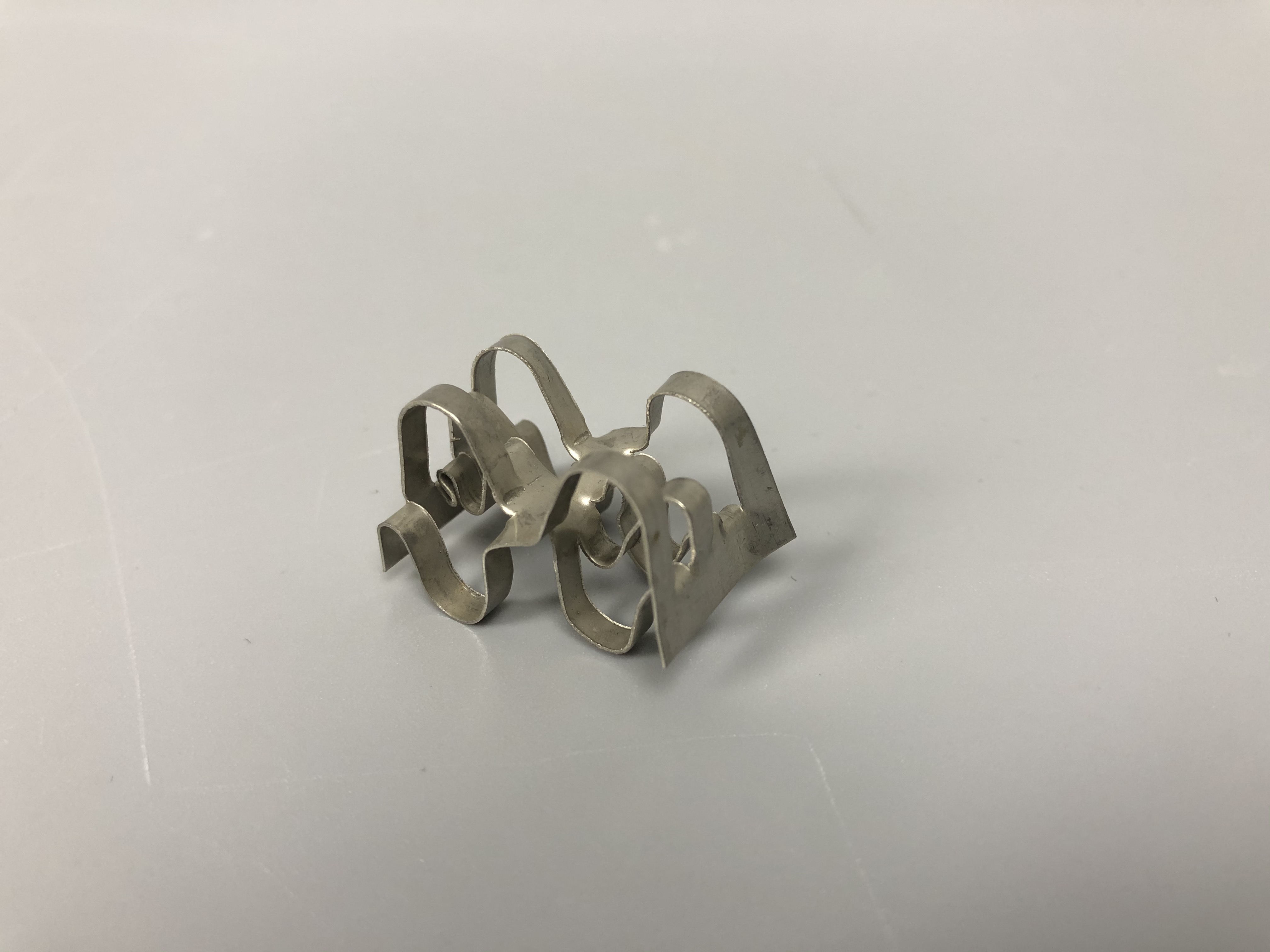

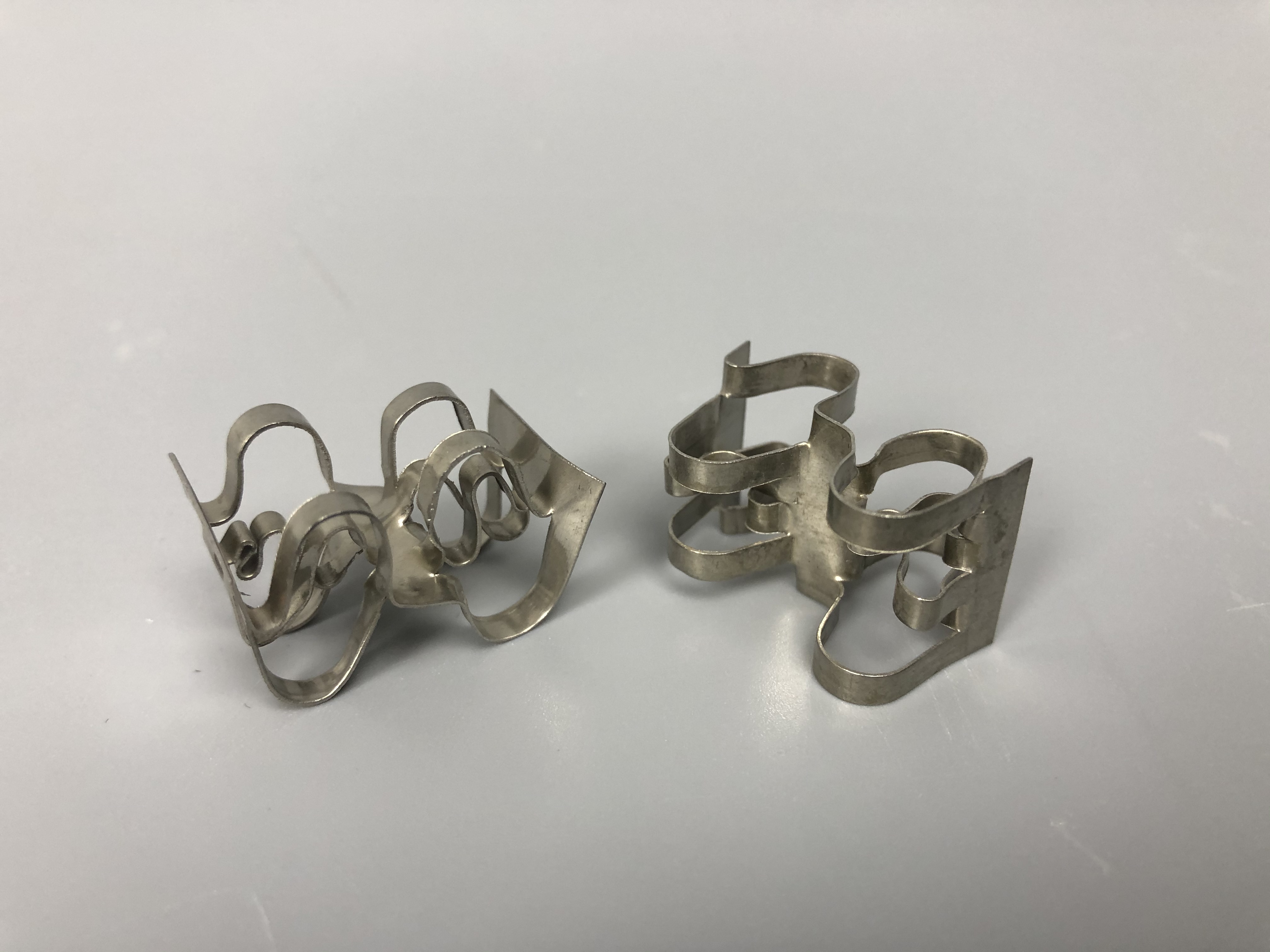

Metal Super Raschig Rings

The technology used in designing these rings solves the puzzle of industries modern heavy-duty packaging demands. Unlike in previous instances of packaging shapes, this model discourages droplet formations which is a common hindrance affecting large gas loads.

The super raschig ring has a greater loading capacity of more than 30% and almost 70% pressure drop reduction. The design exhibits a mass transfer efficiency of more than 10% compared to another conventional metal packaging.

These raschigs are widely applicable in environmental protection, chemical fertiliser industries, and petrochemical industries packaging towers among others.

A wide range of materials such as stainless steel 304, 304L, 410, 316, 316L and stainless steel can be used during manufacturing. Packaging is done in wooden cases, jumbo bags, and carton boxes to enhance safety.

Plastic Raschig Rings

We offer a huge assortment of high-grade plastic raschig rings which are very popular based on their renown features such as optimum reliability, efficiency, premium quality, and a sturdy make among other factors.

We have adhered to all the necessary industrial standard sizes and specifications. Our structured products are highly applicable to dropping column pressure and lowering temperatures.

The products are heat resistant and are available in customised sizes meeting all the customers' specifications.

Stainless Steel Raschig Rings

Having invested heavily in the production of SS raschig rings, we can offer a vast gamut of the product such as SS 316L/304L or SS 316/304.

These raschigs are highly appreciated based on their unique characteristics of high efficiency, quality, and durability. However, the designs are sturdy in nature and readily available in conformity with market standardisations.

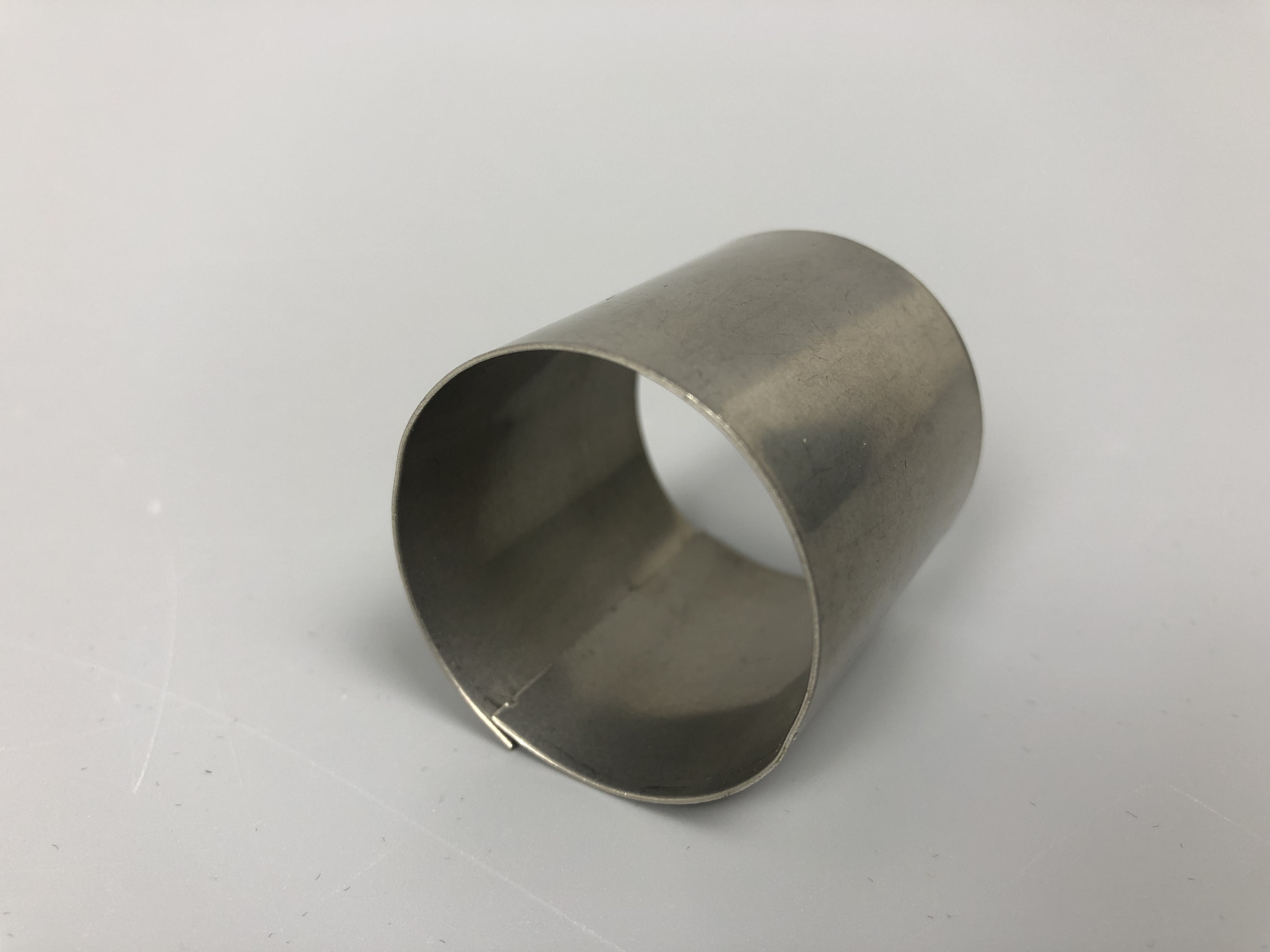

Metal Raschig Rings

These are pieces of tubes with almost equal diameters and length. They are used in large quantities therefore packed as a bed of columns to aid in chemical engineering and distillation processes.

They are usually made of metal or ceramic. These raschigs provides a large surface area to enhance interactions between vapour, gases, or liquids within the column. Metal Raschigs are available in a range of thicknesses of 0.2mm to 1.5mm depending on the size of your raschig rings.

Fine finishing creating a spectacular view.

Supper efficient

Superior in quality standards

Sturdier in operations

Longer shelf life

Efficient in performance

Highly flexible

Dimensional accuracy

Quality assurance

Compact design

Long lasting

Non-corrosive

Application

Raschig rings are highly applicable in distillation columns in the production of beverages.

Used in plants handling liquids and gases for ensuring that chemical reactions, gas absorptions, and or stripping.

Borosilicate Glass Raschig rings are used in handling nuclear materials. Tanks and vessels containing fissile material solutions are laced with this type of rings to enable smooth and less risky operations. For example, Uranyl Nitrate enriched solutions need borosilicate glass raschig rings to prevent accidents.

Shipment

Packaging:

Raschig rings will be packed by plastic bags, wooden case, carton

Delivery:

We always make international deliveries within the fifteen working days after ordering. Oversea shipments are conducted in Tianjin with all the international shipping regulations.

Raschig rings are packed by plastic bags

Raschig rings are packed by plastic bags

Raschig rings are packed by wooden case

Raschig rings are packed by wooden case

Raschig rings are packed by carton

Raschig rings are packed by carton

FAQ

  • What is Mode of operations about raschig rings?
  • Condensed vapour or reflux runs through the distillation column while covering the rings' surfaces. Vapour is emanating from the re-boiler then ascends in the column. Equilibrium is attained as liquid and vapour pass each other in a small space.

  • How much is raschig rings prices?
  • Our prices range depending on the type of material used in manufacturing our products. Ideally, more durable products tend to be a bit expensive compared to their counterparts non-durable designs.

  • How many types of raschig rings are there?
  • The following are the different types of Raschig rings:

    Metal Raschig rings

    Metal Raschig rings

    Plastic Raschig rings

    Ceramic Raschig rings

    Two Cell Ceramic Raschig rings

    Four Cell Raschig rings

    PTFE Raschig rings

    Carbon Raschig rings

    CS and MS Raschig rings

    Inconel Raschig rings

    Titanium Raschig rings

    Copper Raschig Rings

    PVDF Raschig rings

    Raschig rings

    HDPE Raschig rings

    PP LTHA Raschig rings

    FEP Raschig rings

    Graphite Raschig rings

    SS Raschig rings

    Porcelain Raschig rings

    Alloy Steel Raschig rings

    Polypropylene Raschig rings

    CPVC Raschig rings

    Aluminum Raschig rings

    Cross Partition Raschig rings

    PVC Raschig rings

    SS 304 Raschig rings

  • Which warranty and quarantine do you offer?
  • We always offer a guarantee for all our products based on material types and designs. In the case of breakage before delivery, we provide immediate replacements to all our clients across the world.




















Conclusion

Raschig rings are available in a wide variety of ranges based on the material used. Some materials are more durable than the others and hence being more preferred. However, Raschig Rings plays a significant role in the brewing and packaging industries.

We have always excelled in making your industrial life comfortable based on the fact that we offer quality products at considerable prices. Get the suitable raschig ring today for your industrial use. This review will assist you to do just that.
