US $80-170 / Cubic Meter

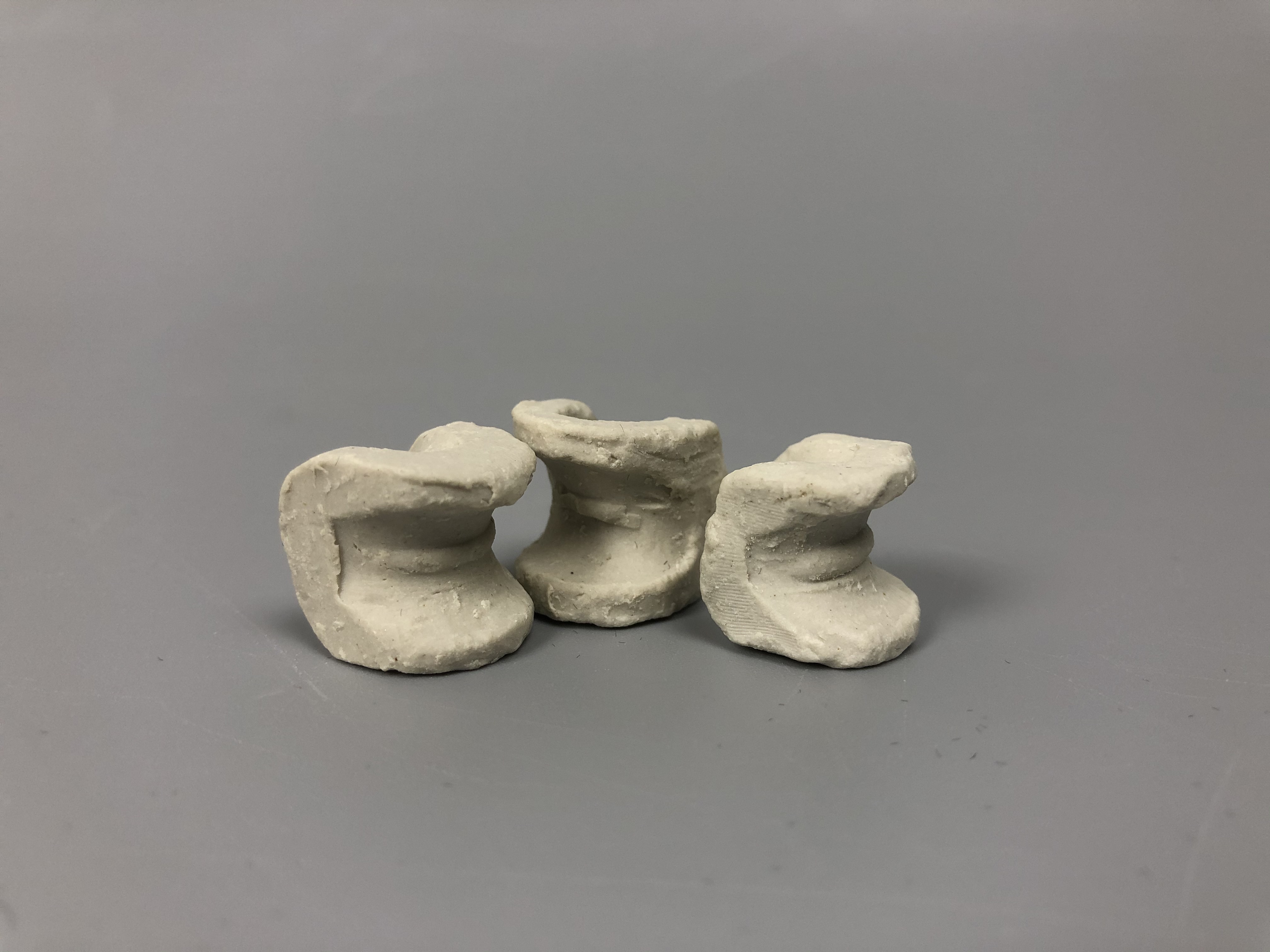

Berl saddles are column packings which are commonly used in distillation process formed in a shape of a saddle. With its purpose to have the vapor-liquid distillation to be even on its both sides, the internal and external side of the saddle, berl saddle packing is purposely designed to be open entirely.
Berl saddles can be available in either ceramic material or porcelain made. As it has been proven already, ceramic berl saddles are trusted to resist in strong heat or acid effect. On the other hand, porcelain berl saddles can serve as a boiling stones and in terms of its contact area, it is expected to provide a very high surface having to resist in a lower gas flow which makes its internal distribution performs better.
Ceramic Packing Material
With either material made, ceramic or porcelain, berl saddles properties helps a lot to offer better performance during distillation process. Berl saddles packing factor has made its way far better than Raschig rings especially in terms of fluid distribution.
Although it may be easily nested due to its opening structure or may appear to be fragile, yet this ceramic and porcelain berl saddles purpose is to perform in low pressure against on the internal wall of the tower which is beneficial in absorbing acid, scrubbing, cleaning, and gas drying in industries manufacturing fertilizers and other chemicals.
Berl saddles are characterized to have a high mechanical strength, excellently endures heat, offers high chemical stability and can even extend to resist against acid, salt, alkali, and other organic solvents.
It has sizes available in 19mm, 25mm, 38mm, and 50mm with its corresponding weight of 725, 640, 617, and 650 in kg/m3, respectively.
| Berl saddles specification | ||||||||||
| Specific gravity (g/cm3) | Water absorption (%) | Acid-resisting strength (%) | Firing temperature (°C) | Softening point (°C) | Density (kg/m3) | K2O+Na2O | CaO | Fe2O3 | Al2O3 | SiO2 |
| 2350 | >1400 | 1280-1320 | <4 | <0.5 | 2.25-2.35 | <2-4 | <1-2 | <1 | 23-30 | >70 |
| Berl saddles details: | ||||||||||
| Size | Surface area | Number per m3 | Bulk density | Free Volume | ||||||
| (mm) | (inch) | (m2/m3 | (pcs) | (kg/m3) | (%) | |||||
| 19 | 3/4 | 225 | 83950 | 725 | 58 | |||||
| 25 | 1 | 206 | 43250 | 640 | 61 | |||||
| 38 | 1-1/2 | 110 | 12775 | 617 | 72 | |||||
| 50 | 2 | 95 | 7900 | 650 | 72 | |||||
| Berl saddles shippment: | ||||||||||
| Quantity/ Package | Carton | Plastic Bag | Supersack | Wooden Box | ||||||
| 1X20GP | 20m3 | 20m3 | 20m3 | 20m3 | ||||||
| 1X40GP | 20m3 | 40m3 | 40m3 | 40m3 | ||||||
| Delivery Time | 5-7 days since payment receipt. | |||||||||
Accurate dimension
Durable
High mechanical strength
High chemical stability
Resist temperature
Resist against acid
Resist against Salt
Resist against Alkali
The main purpose on how to use porcelain berl saddles are commonly in drying columns, cooling towers, absorbing columns, scrubbing towers, or actifier columns in chemical industry, coal gas industry, metallurgy, oxygen producing industry.
Berl saddle shipment has maintained its quality and assurance in terms of time and expectation that package will surely arrive within the range of delivery date safely to the customer's address.
Berl saddle is a column packing used for distillation process commonly appear in a shape of a saddle.
With the purpose of providing the best features, choosing what material of berl saddles to purchase, whether ceramic or porcelain, will greatly depend on the purpose of its usage.
For strong heat and acid resistance, ceramic berl saddle could be a better option. While for the purpose of better internal distribution in terms of lower gas flow, porcelain would be a good choice.
Berl saddles are available in light grey.

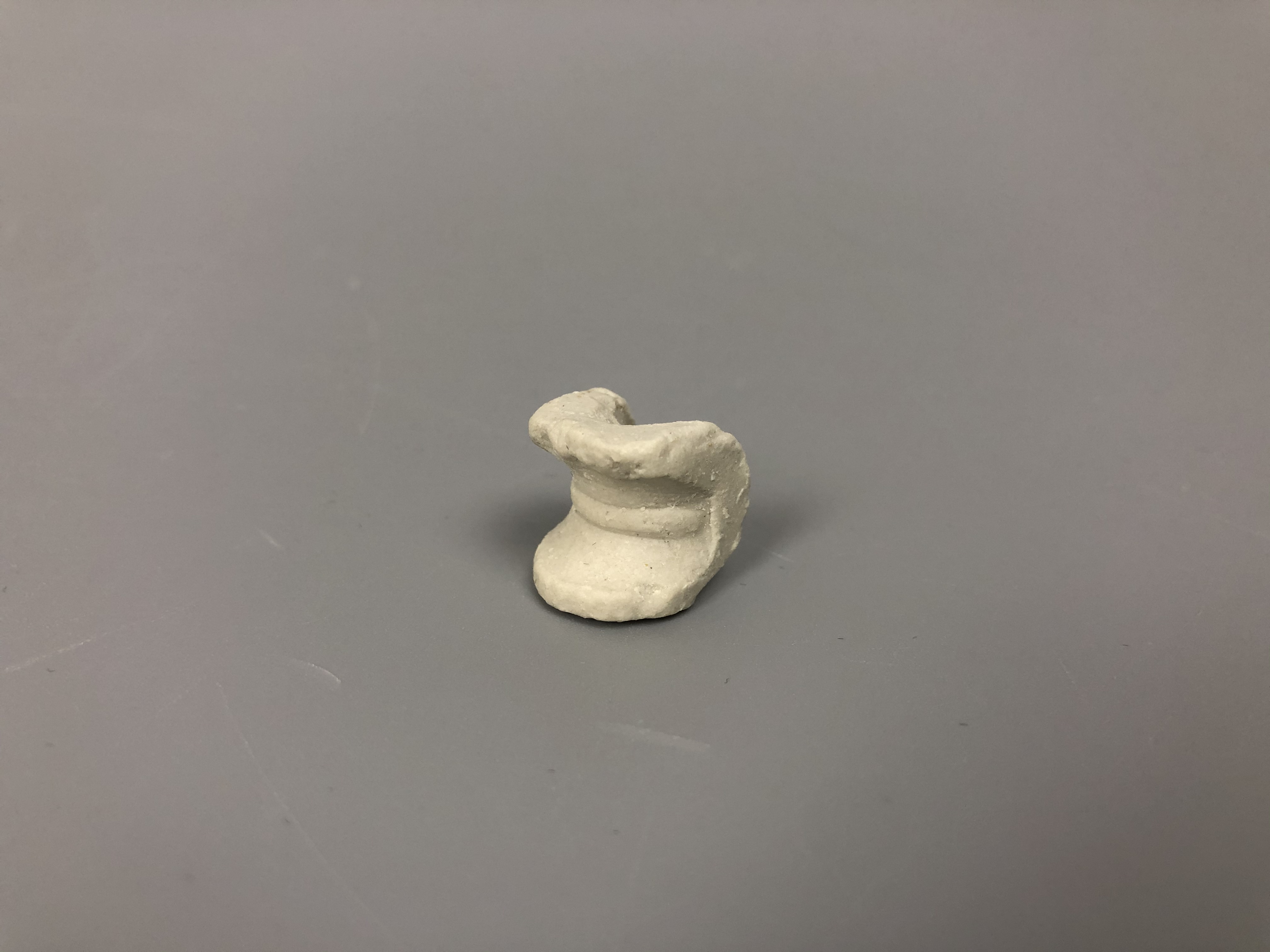

It appears in a ring structure like a saddle.
Since berl saddle packing has proven its quality and durability, the option of choosing one is a best choice. As part of berl saddle manufacturing standards, it has been assured that smoothness, longevity, and heat and acid resistance are well taken cared of to be considered and highly expected by the customer.
